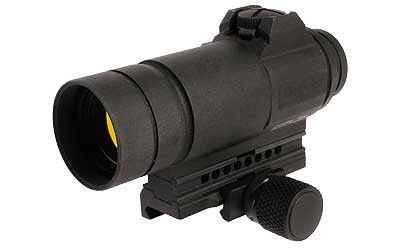

Aimpoint CompM4S Red Dot Sight w/ QRP2 Mount & ARD
Aimpoint CompM4 sights are the finest sights that Aimpoint has ever produced. The improved energy efficiency provides up to 8 years of continuous use from a single AA battery! Aimpoint CompM4 sights incorporate an integral mount that eliminates the need for a separate ring and can be customized with vertical and forward spacers to fit a variety of firearms. They can also be used by hunters and sport shooters that need night vision compatibility. CompM4 sights are available in two versions. The two versions are identical except that the CompM4 offers a high battery compartment, while the CompM4S offers a low battery compartment. The Aimpoint CompM4 is now the latest version of the US Army's M68 CCO (Close-Combat Optic), continuing a legacy that Aimpoint has maintained since 1997. The performance of the CompM4 sights is optimized for use with all generations of Night Vision Devices (NVDs), but is especially suited for 3rd generation night vision technology. Aimpoint's unique band-pass coating on the front lens reflects select frequencies of red light at near 100% efficiency in order to give the highest possible dot brightness with the smallest amount of energy while transmitting nearly 100% of light in the Infrared and near-infrared part of the spectrum to provide the clearest, brightest image possible when used with a 3rd generation NVD. With 7 NVD-compatible brightness settings and 9 Daylight settings including one extra-bright setting, the CompM4 and CompM4S are ready for use around the clock.
Technical Information: Aimpoint CompM4 and CompM4S
- Internal voltage regulator allows the CompM4 to be used with any AA size battery
- Seven night vision compatible settings and 9 daylight settings
- QRP2 mount has twice the clamping force of the original QRP, and the mounting knob is wider and shorter to improve operation, and lessen the chance of becoming snagged on other gear
- Mount base is "keyed" into to the body of the sight to absorb recoil
- Mount base screws directly into the sight - no separate sight ring is required
- 2 MOA dot for close combat and long distance engagement
- Matches perfectly with Aimpoint 3XMag, (magnifier module)
- Unequalled light transmission
- Submersible to 150 feet (45 meters)
- Vertical spacer included
- Standardized as the US Army's new M68CCO
- Improved adjustment caps are easier to remove, and are protected against impact
- Dimensions (in inches): 5.3 (l) x 3 (w) x 2.8 (h)
- Weight: 9.3 oz sight only, 11.8 oz with integrated mount
- Includes bikini style lens cover and removable ARD.
GENERAL DATA |
|
Article number |
12172 |
Technology |
ACET (Advanced Circuit Efficiency Technology) |
Working principle |
Reflex collimator sight - red dot sight |
OPTICAL DATA |
|
Lightsource |
LED (Light Emitting Diode) totally eye-safe |
Lightsource wavelength |
650 nm red light |
Red dot size in MOA (minute of angle)* |
2 |
Parallax |
Absence of parallax - |
Eye relief |
Unlimited |
Night vision compatibility |
Yes |
Anti-reflex coating all surfaces & multi-layer coating objective lens |
Yes |
Magnification |
No magnification (1X) |
ELECTRONIC DATA |
|
Battery |
One AA battery, accepts 1.5-5V - low battery compartment |
Battery life in hours ** |
80 000 (over 8 years of continuous use) |
Battery life in hours **at NVD settings *** |
500 000 |
Dot intensity adjustment |
Manual rotary switch - low switch location |
Daylight (DL) settings |
9 DL of which one extra bright |
NVD settings |
7 NVD |
MECHANICAL DATA |
|
Material housing |
Extruded high strength aluminum |
Surface finish |
Hard anodized, matte |
Color housing |
Black |
Adjustment 1 click |
16mm at 100m, (1/2” at 80yds) |
Mounting methods |
Integrated QRP2 - (Quick release) |
ENVIROMENTAL DATA |
|
Temperature range |
-45° - +71° C, (50°- +160° F) |
Water resistance - submersible to |
45m, (150ft) |
Radioactive components used |
None |
DIMENSIONS |
|
Length |
120mm, (4.7”) |
Width/height sight only |
53 x 60mm, (2.1” x 2.4”) |
Width/height including mount |
72 x 72mm, (2.8” x 2.8”) |
Weight sight only |
265g, (9.3oz) |
Weight sight with integrated mount |
335g, (11.8oz) |
* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards.
** at room temperature & at setting 12 out of 16 - (Figures valid for a good quality 1.5V alkaline AA battery)
.
*** Night Vision Device.
Specifications are subject to change without notice.
